Neutrik NAC3MPA PowerCon "Power In" Chassis Connector - Blue - 20A - 250V

• Description

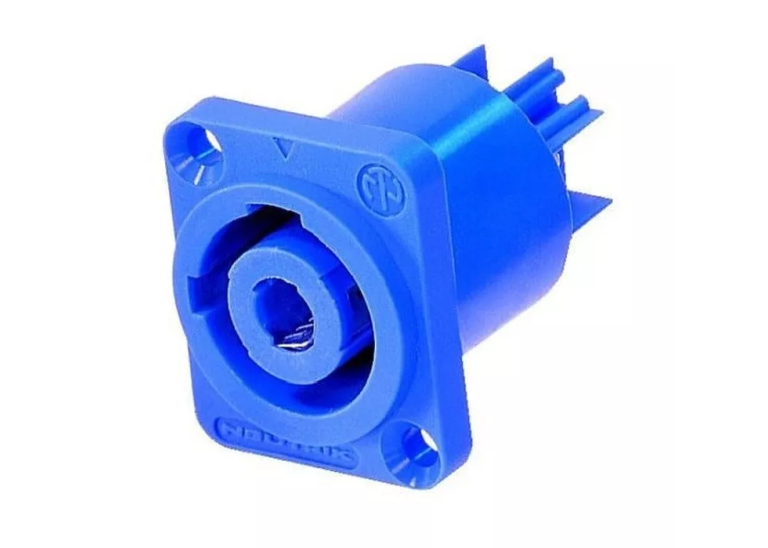

  ORIGINAL Neutrik NAC3MPA Powercon Chassis Connector - Blue
  The Neutrik NAC3MPXXA powerCon "Power In" Chassis Connector in Blue is a lockable single phase connector, can be connected or disconnected under load or live, and has a current rating of 20A and voltage rating of 250VAC. Meets the latest safety standards.

  Locking Mains Connector
  This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 60320-1. Appliance inlet connector, 3/16" flat tab terminals, blue. The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

  Features:

  • Lockable single phase connector
  • Drop-in replacement for NAC3MPA-1; mates to NAC3FCA cable connectors
  • Certified according to IEC 60320-1 & UL 60320-1
  • 3 contacts for line, neutral and premating safety ground
  • Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Extremely robust and reliable
  • IEC 62368-1 compliant
  • UL94 V-0 materials
